This adhesive tape product is designed specifically for T-FIT® Installations. Comprised of a PVDF polymer film and a high-performance pressure sensitive adhesive. Especially designed for chemical and flammability resistance.
PVDF Tape Product Description
Product Code: ZAXX9164

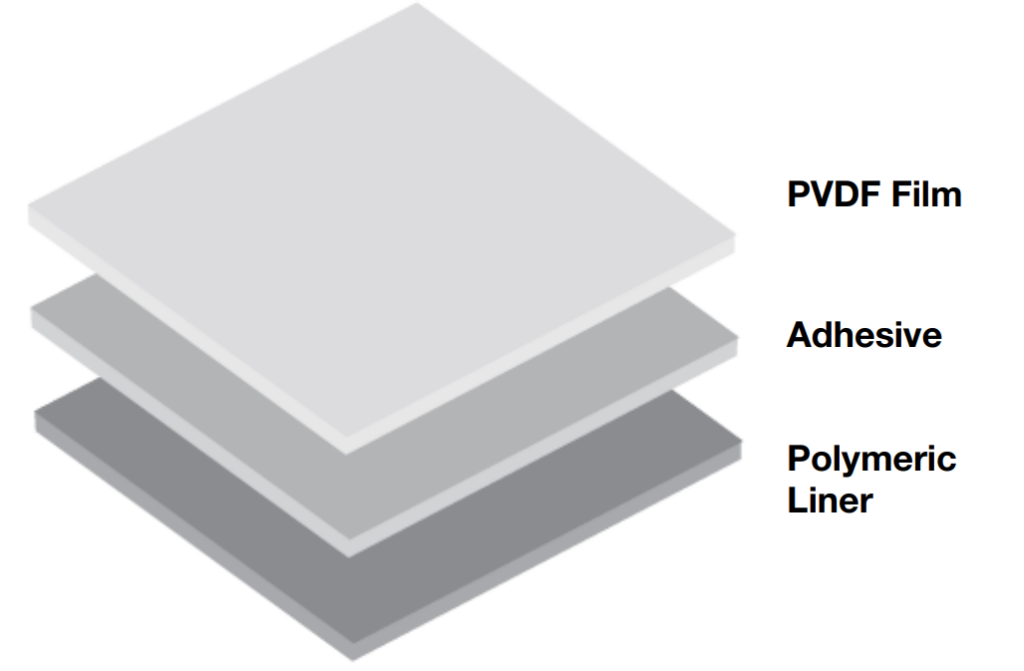

Roll Construction:
- 0.003” PVDF polymer film
- 0.003” white high-performance adhesive
- Polymeric release liner
- Total Tape Thickness 0.011” (including release liner)
Roll Dimensions: Product supplied as the following:
Current Product supplied as the following:
- 1” (25,4mm) wide x 60 linear yards long (54.8m)
- Supplied on a 3” plastic core
- Release liner facing outward, film inward
PVDF Tape Format:
- Standard format of solid back or non-split liner
- Also available as a “split-back” or 50/50 split release line
PVDF Tape Technical Information
| Property (Per ASTM D903 Al Foil to Al Plate) | Minimum Average | Maximum Individual |
|---|---|---|
| Peel Strength (PIW) at 70°F ± 5°F plus 7 days after 7 days aging at 70°F ± 5°F | 10 | 9 |
| Peel Strength (PIW) 1 day at 70°F ± 5°F plus 6 days at 95 to 100% relative humidity at 120°F ± 5°F | 15 | 14 |
| Peel Strength (PIW) 1 day at 70°F ± 5°F plus 6 days exposure at 160°F ± 5°F | 18.5 | 7.5 |
| Static load creep properties (Per ASTM D903 Al Foil to Al Plate) | Creep Time (hrs) | Minimum Average | Maximum Individual |
|---|---|---|---|
| Creep distance (inches per pound/inch of width) at 70°F ± 5°F plus 7 days after 7 days aging at 70°F ± 5°F | 24 | 1 | 2 |
| Creep distance (inches per pound/inch of width) 1 day at 70°F ± 5°F plus 6 days at 95 to 100% relative humidity at 120°F ± 5°F | 24 | 1 | 2 |
| Creep distance (inches per pound/inch of width) at 1 day at 70°F ± 5°F plus 6 days exposure at 160°F ± 5°F | 24 | 0.5 | 2 |
Thermal Performance:
- Film & Adhesive is recommended to temperatures up to 212 °F / (100 °C)
Storage Guidelines:
- Shelf life of 18 months from date of manufacture
- Film & Adhesive is recommended to be stored at temperatures between 5 – 32°C / 40 – 90°F
Application Notes:
- Bonding surfaces must be clean and dry
- Once release liner is removed the tape must be applied immediately
Application guidelines:
- Keep the PVDF tape in its original packaging until use.
- Being a pressure sensitive tape, for optimum results, an even pressure must be applied to the whole taped area to create the best possible bond between tape and substrates.
- The tape should be applied to clean and dry surfaces
- The best application conditions are obtained between temperatures between 15°C to 40°C (60°F to 105°F)
Regulatory Data:
- PVDF Film meets FDA 177.2510 & 177.2600 Repeated Contact with Food, 177.1520 Single-use Adjuvant for use in Polyolefins 1% Concentration
