Product Description
PET Tape Product Code:
2TFPETTAPEPB55

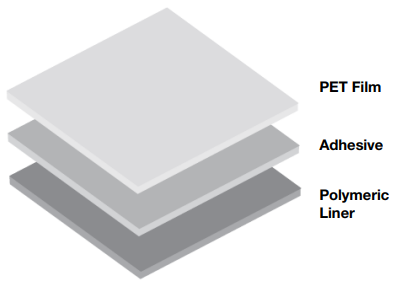

Roll Construction:
- 0.002”/0.051mm PET polymer film
- 0.004”/0.102mm white high-performance adhesive
- Polymeric release liner
- Total Tape Thickness 0.012”/0.3 mm (Including release liner)
Roll Dimensions:
Product supplied as the following:
- 1”/25mm wide x 60 linear yards/55 meters long
- Supplied on a 3”/75mm core
- Release liner facing outward, film outwards
PET Tape Format:
Standard format of solid back or non-split liner
Also available as a “split-back” or 50/50 split release line
T-FIT® PET Tape Technical Information
| Adhesive test | Method | Details | Result |
|---|---|---|---|
| 180° Peel Strength | PSTC-1 | 3 days @RT, aluminium foil to aluminium plate | 14.9 pounds per inch width |
| 180° Peel Strength | PSTC-1 | 3 days @RT, polyester to aluminium plate | 7 pounds per inch width |
| Hot Shear 350°F | PSTC-7 | 500 grams 1″ × 1″ | No movement in 90 minutes |
| Room Temperature Shear | PSTC-7 | 500 grams 1″ × 1″ | No movement in 24h |
Thermal Performance:
Film & Adhesive is recommended for temperatures up to 212 °F / (100 °C)
Storage Guidelines:
Shelf life of 18 months from date of manufacture
Film & Adhesive is recommended to be stored at temperatures between 5 – 32°C / 40 – 90°F
Application Notes:
Bonding surfaces must be clean and dry
Once release liner is removed the tape must be applied immediately
PET Tape Application guidelines:
Keep the PET tape in its original packaging until use.
Being a pressure sensitive tape, for optimum results, an even pressure must be applied to the whole taped area to create the best possible bond between tape and substrates.
The tape should be applied to clean and dry surfaces
The best application conditions are obtained between temperatures of between 15°C and 40°C (60°F to 105°F)
Exclusion of Liability
Any information contained in this document is, to the best of the knowledge and belief of Zotefoams plc and of Zotefoams Inc. (together herein referred to as ZOTEFOAMS), accurate. Any liability on the part of ZOTEFOAMS or any subsidiary or holding company of ZOTEFOAMS for any loss, damage, costs or expenses directly or indirectly arising out of the use of such information or the use, application, adaptation or processing of any goods, materials or products described herein is, save as provided in ZOTEFOAMS’ conditions of sale (“Conditions of Sale”), hereby excluded to the fullest extent permitted by law.
Where ZOTEFOAMS’ goods or materials are to be used in conjunction with other goods or materials, it is the responsibility of the user to obtain from the manufacturers or suppliers of the other goods or materials all technical data and other properties relating to those other goods or materials. Save as provided in the Conditions of Sale no liability can be accepted in respect of the use of ZOTEFOAMS’ goods or materials in conjunction with any other goods or materials.
Where ZOTEFOAMS’ goods or materials are likely to come into contact with foodstuffs or pharmaceuticals, whether directly or indirectly, or are likely to be used in the manufacture of toys, prior written confirmation of compliance with relevant legislative or regulatory standards for those applications may be requested from ZOTEFOAMS, if appropriate. Save as provided in the Conditions of Sale no liability can be accepted for any damage, loss or injury directly or indirectly arising out of any failure by the user to obtain such confirmation or to observe any recommendations given by or on behalf of ZOTEFOAMS.
ZOTEFOAMS MAKES NO WARRANTIES EXPRESS OR IMPLIED, EXCEPT TO THE EXTENT SET OUT IN THE CONDITIONS OF SALE, AND HEREBY SPECIFICALLY EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO ANY GOODS, MATERIALS OR PRODUCTS DESCRIBED HEREIN.
T-FIT® and ZOTEK® are registered trademarks of Zotefoams plc. All rights reserved. Issue 1 Revision 1
September 2024
