Cold Pipe Insulation for Condensation Prevention

The following describes the low-temperature performance of T-FIT® Hygiene pipe insulation.

T-FIT^® Hygiene is made from Zotefoams’ ZOTEK® F43HT PVDF closed cell foam, a material which has numerous benefits when it comes to cold pipe insulation, especially for frozen manufacturing.

Cold pipework is susceptible to condensation forming on its surface. This occurs if the surface temperature of the pipe falls below the dew point of its environment. Formation of condensation in clean manufacturing environments can lead to contamination of the environment and compromise the quality of products being made, so must be avoided.

Installing T-FIT cold pipe insulation on pipework can raise its surface temperature above the dew point of the environment and avoid formation of condensation on the insulation. It is vital that the thickness of pipe insulation is selected such that the surface temperature of the insulation does not fall below the dew point temperature in the environment where it is installed. As seen in figure 1, the initial increase in thickness of insulation (compared to no insulation at all) has a large effect on surface temperature of the pipe insulation, which then levels off with further increasing thickness.

Theoretical modelling can be used to predict the minimum required insulation thickness for a particular pipe fluid temperature within a particular temperature and humidity environment. It should also be noted that surface temperature is extremely sensitive to local airflow; this flow can cause the surface temperature to be raised above the dew point and further avoid condensation formation. Some examples of the predictive model can be found in Figure 1.

Dew points

At a given temperature and relative humidity, there will be a certain concentration of water vapour in the air. As the air is cooled, the water vapour in the air will begin to condense. At the dew point for a particular temperature, the water vapour becomes saturated in the air and condenses onto surfaces as droplets. The higher the humidity of the controlled manufacturing environment, the higher the dew point temperature will be.

To avoid condensation formation on surfaces, the surface temperature must be above the dew point of the environment. The graphs in Figure 1 show how surface temperature of pipe insulation can compare to dew points at different relative humidities in a particular scenario. One can see that thinner insulation can be used to prevent condensation at lower relative humidity, whereas thicker insulation is required at higher relative humidities.

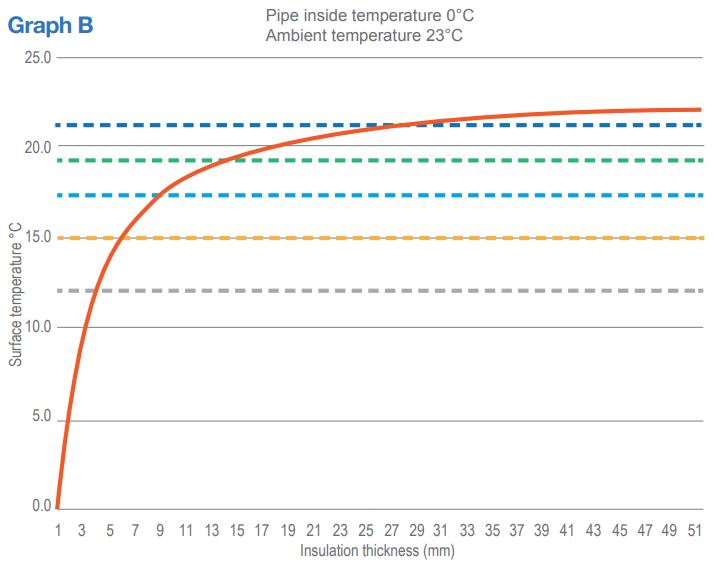

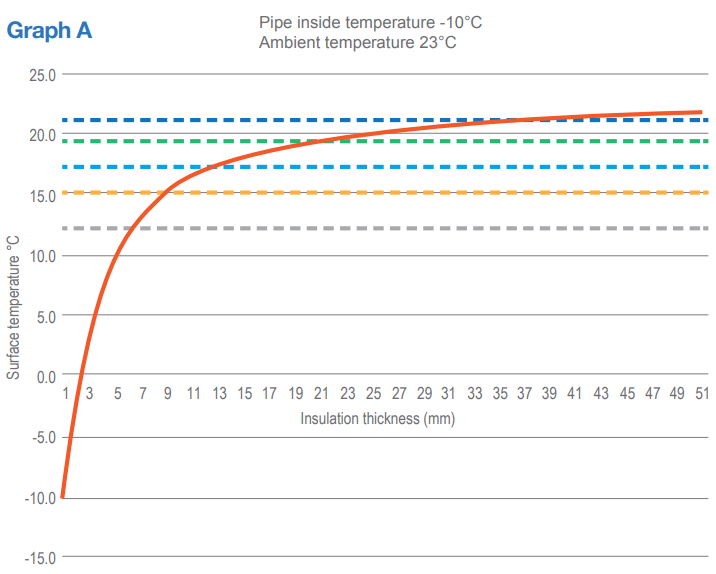

Figure 1: Graphs showing theoretical surface temperature of insulation against insulation thickness, compared to the dew points of different relative humidity environments. The ambient temperature chosen was 23°C and pipe size 2” NB.

Minimum service temperatures

Minimum service temperature does not represent any specific physical property, and thus cannot be determined by any single standardised test method. Instead, one must think of the physical properties that are important for a particular application, and whether those are adversely affected by low temperatures. Aspects to consider include induced stress from shrinkage, as well as embrittlement of material at lower temperatures combined with external forces, such as knocks and vibrations.

Dimensional changes

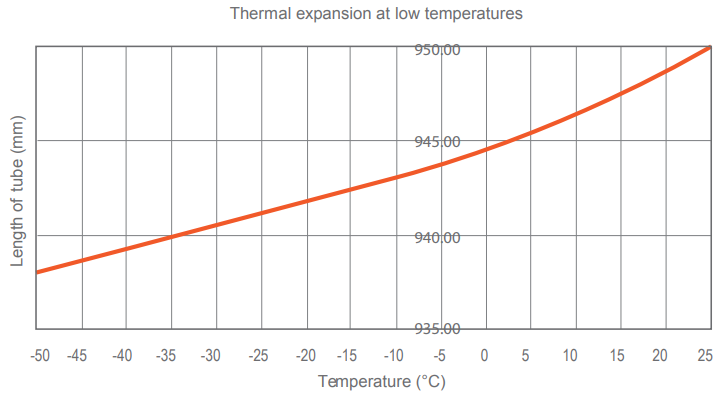

When insulation foams are cooled to low temperatures, they tend to shrink. The coefficient of linear thermal expansion can be used to predict dimensional changes at low temperatures. For F43HT foam below 0°C, the foam is likely to decrease in length by 1 mm per metre for every 8°C cooling. This must be considered when installing the insulation; it is advisable to install the cold pipe insulation tubes under compression. Based on the linear coefficients of thermal expansion, the graph below shows how a tube length of 950 mm installed at 25°C may change in length when a decrease in temperature occurs. Note that this relates to cooling the whole material to that temperature, whereas for tubes, only one face of the material is in contact with the cold pipe, so any dimensional changes will be less severe. Any shrinkage is also typically reversible if the material is re-heated. At extreme low temperatures, the shrinkage forces within the foam can overcome material that is constrained, and it may crack, however the temperature at which this can happen will vary depending on application.

Embrittlement

At low temperatures the stiffness of the materials changes and they can become embrittled; if machinery is subject to knocks or vibrations, then the embrittled material is prone to cracking. This can adversely affect the properties of the cold pipe insulation; if cracks form then moisture may be able to reach the pipe surface and cause corrosion. It should also be considered that low temperature cycles, leading to the repeated expansion and contraction of foam material, will put a dynamic load on the insulating tube that could lead to crack formation at low temperatures.

Benefits of using PVDF for Cold Pipe Insulation

Polyvinylidene fluoride (PVDF) is a semi-crystalline thermoplastic from the family of fluoropolymers, known for their toughness and stability. It is an excellent choice for applications requiring;

• Highest purity
• Resistance to a wide range of chemicals (such as harsh cleaning agents)
• Low permeability (molecules of gas or liquid find it difficult to travel through the polymer structure)
• UV resistance
• Excellent flammability credentials

PVDF is stable over a wide range of temperatures, from negative temperatures right through to +145°C, meaning that the material can be used on cold pipelines subject to ‘Clean-In-Place’ (CIP) processes. The insulation can perform at both the chilled process temperatures and high cleaning temperatures without any loss of thermal performance over the lifetime of the product.
